热水交换器通过蒸汽盘管（蒸汽输入压力小于0.16MPa）或电加热向化胶罐或混合罐提供80℃-100℃的热水。该设备装配有温度计、压力表、液位计、安全阀等。
蒸汽加热型号
| 类型 | HEV-S-1000 | HEV-S-2000 | HEV-S-3000 |
| 热水容量 (kg/h) | 1000 | 2000 | 3500 |
| 热水量(L) | 250 | 420 | 780 |
| 温度（℃） | 80~100 | 80~100 | 80~100 |
| 尺寸（毫米） | φ600×1700 | φ700×2100 | φ900×2200 |
电加热型号
| 类型 | HEV-S-1000 | HEV-S-2000 | HEV-S-3000 |
| 热水容量 (kg/h) | 1000 | 2000 | 3500 |
| 热水量(L) | 250 | 420 | 780 |
| 温度（℃） | 80~100 | 80~100 | 80~100 |
| 加热功率 (kW) | 12 | 18 | 24 |
| 尺寸（毫米） | φ600×1700 | φ700×2100 | φ900×2200 |
| 数量： | |
|---|---|
热水交换器通过蒸汽盘管（蒸汽输入压力小于0.16MPa）或电加热向化胶罐或混合罐提供80℃-100℃的热水。该设备装配有温度计、压力表、液位计、安全阀等。
蒸汽加热型号
类型 | HEV-S-1000 | HEV-S-2000 | HEV-S-3000 |
热水容量 (kg/h) | 1000 | 2000 | 3500 |
热水量(L) | 250 | 420 | 780 |
温度（℃） | 80~100 | 80~100 | 80~100 |
尺寸（毫米） | φ600×1700 | φ700×2100 | φ900×2200 |
电加热型号
类型 | HEV-S-1000 | HEV-S-2000 | HEV-S-3000 |
热水容量 (kg/h) | 1000 | 2000 | 3500 |
热水量(L) | 250 | 420 | 780 |
温度（℃） | 80~100 | 80~100 | 80~100 |
加热功率 (kW) | 12 | 18 | 24 |
尺寸（毫米） | φ600×1700 | φ700×2100 | φ900×2200 |

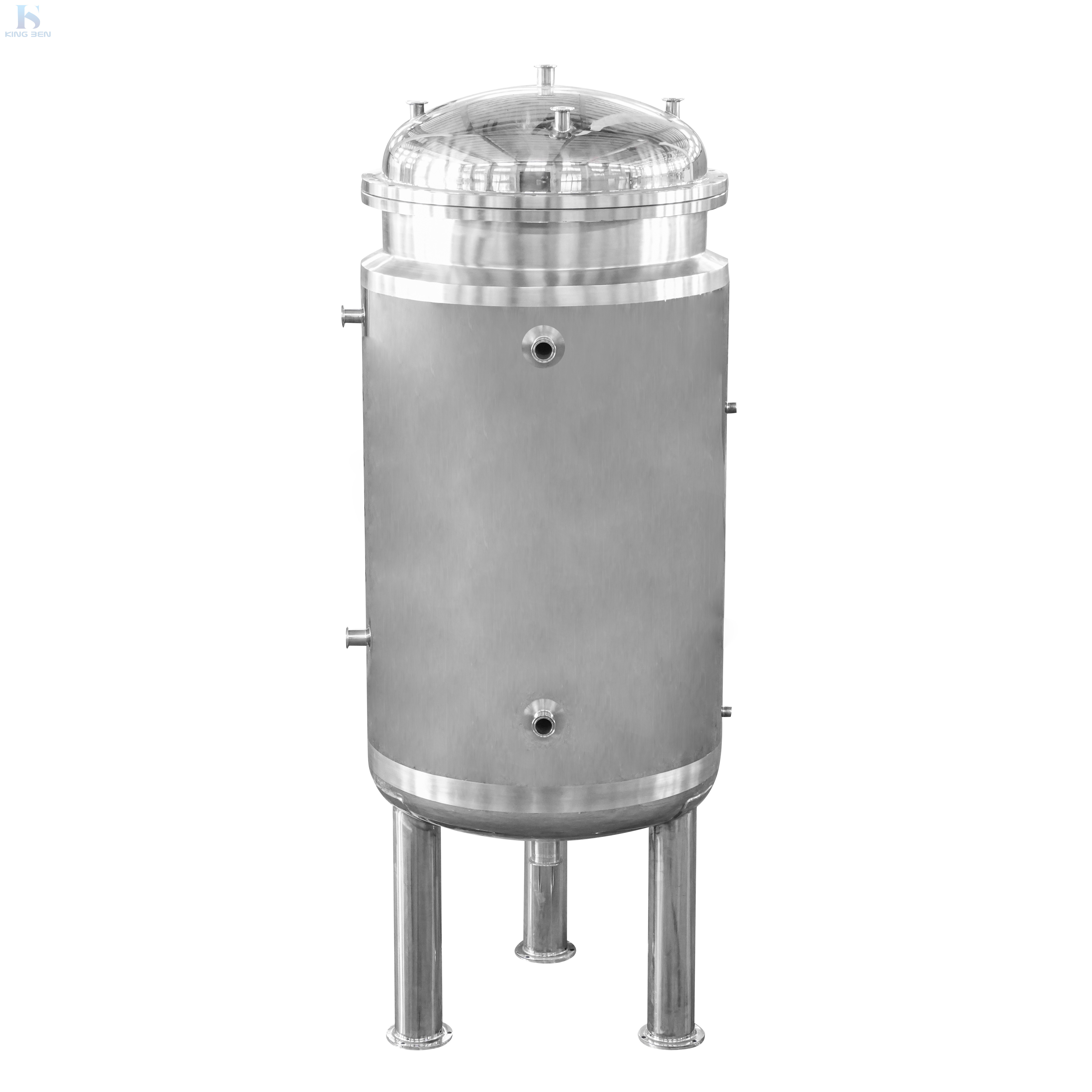

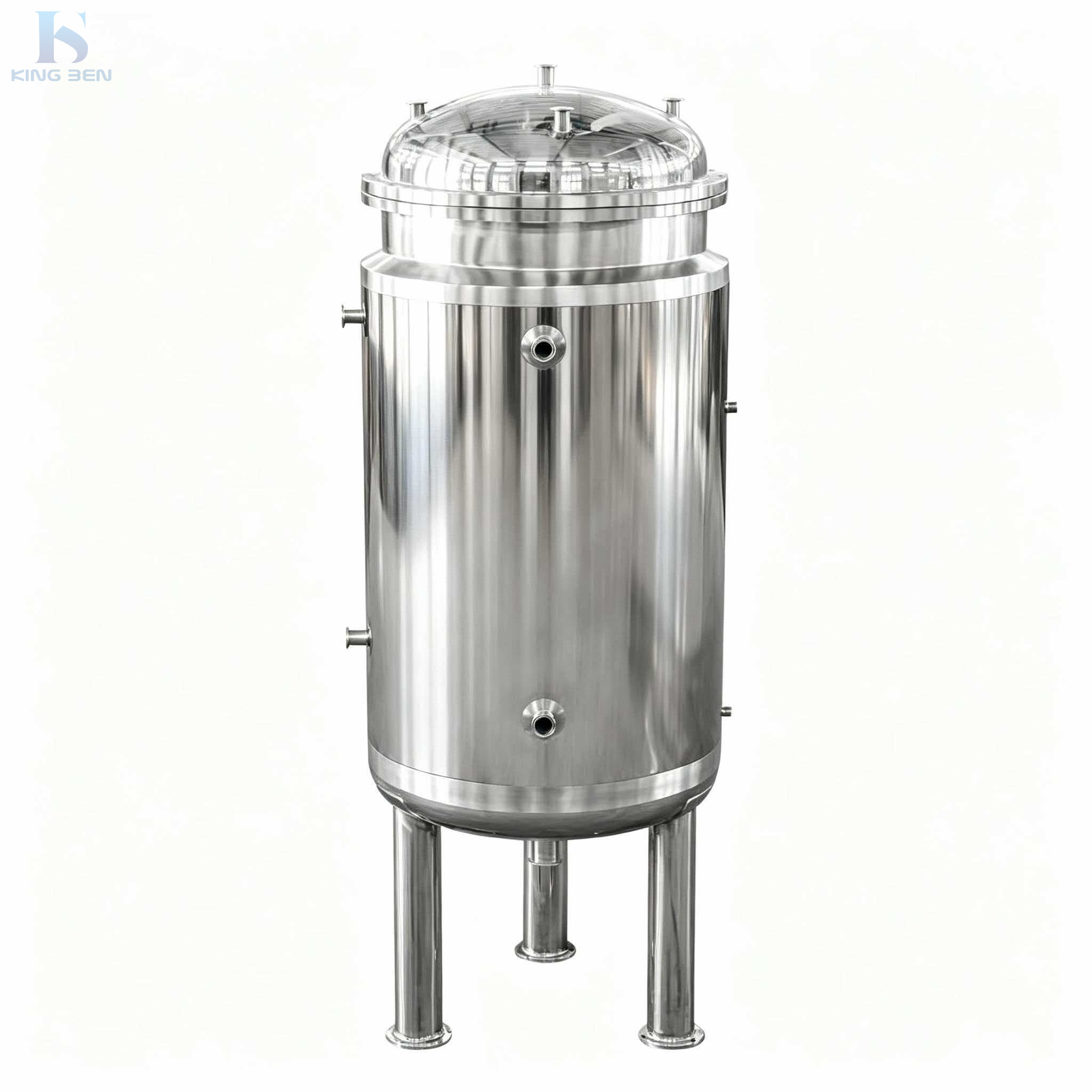

Hot Water Exchanger
( E-heating & steam heating )
Details For Product:
Jiangsu's KINGBEN Machinery Co., Ltd. is located in Dingyan Industrial Park, High-tech-Zone, Yancheng City, Jiangsu Province, china. It is a professional pharmaceutical equipment factory that integrates design, research and development, technical consulting, production, engineering installation, operation training, and after-sales service.
My product is used in various industrial fields such as biopharmaceuticals, lithium batteries, fine chemicals, cosmetics, powder metallurgy, food and beverage, new energy, and new materials. Various non-standard automation specialized equipment can be customized according to your needs.
For more than 20 years, my company has adhered to its unique technological advantages and upheld the principle of "quality first, unlimited innovation". My company has continuously launched high-quality products with "high standards" and has multiple innovative technologies in the field of softgel capsule production line, serving customers in over 30 countries and regions.
My device adopts dual purpose constant temperature heater with E-heating &steam heating.
Materials are made of 304 stainless steel, with a two-layer structure of the tank body.
Supporting foot type vertical installation, with fast heating, strong insulation performance, and providing a 10 ºC~150 ºC thermal cycle heat source.
| Effective volume (L) | 500L | 1000L |
| Heating power | 36 KW | 48 KW |
| Heating temperature | 0-180 °C | 0-180 °C |
| Hot water volume | 2000Kg/H | 4000Kg/H |
| Dimension | φ800*2100mm | φ1000*2100mm |
| Weight | 280 kg | 420KG |
