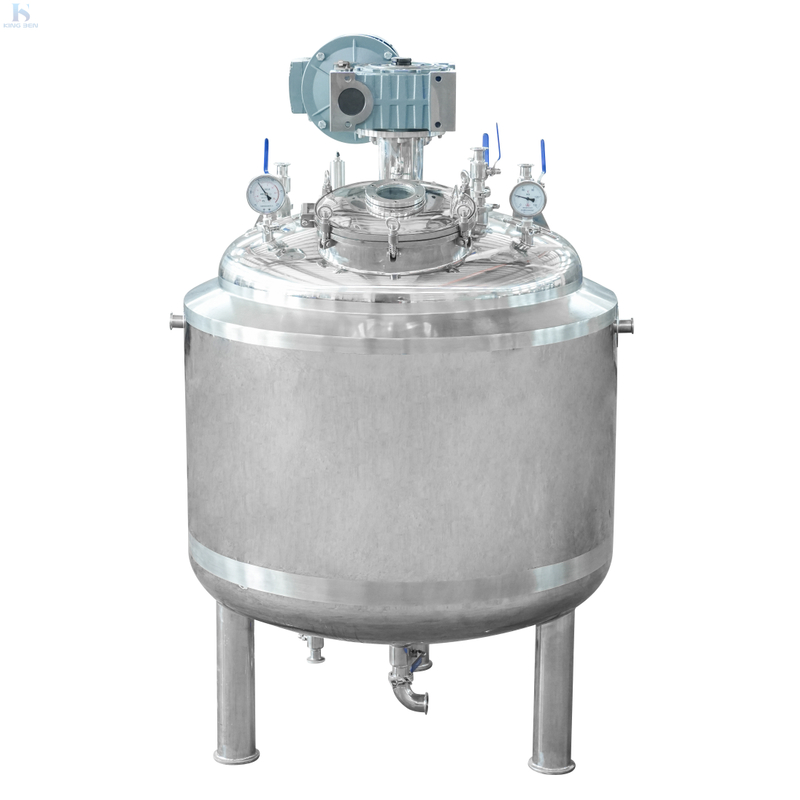

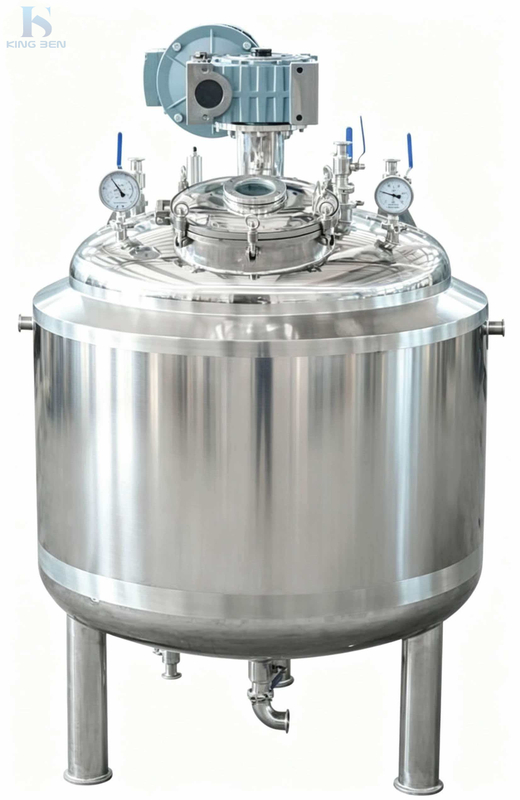

水浴式化胶罐 Water-bath Gelatin Melting Tank
化胶罐是软胶囊生产中胶皮制备的关键设备，化胶质量的好坏、化胶效率的高低直接影响软胶囊的质量和软胶囊车间生产效率。
水浴式化胶罐可有效提高成品胶品质，防止过温糊胶废胶。

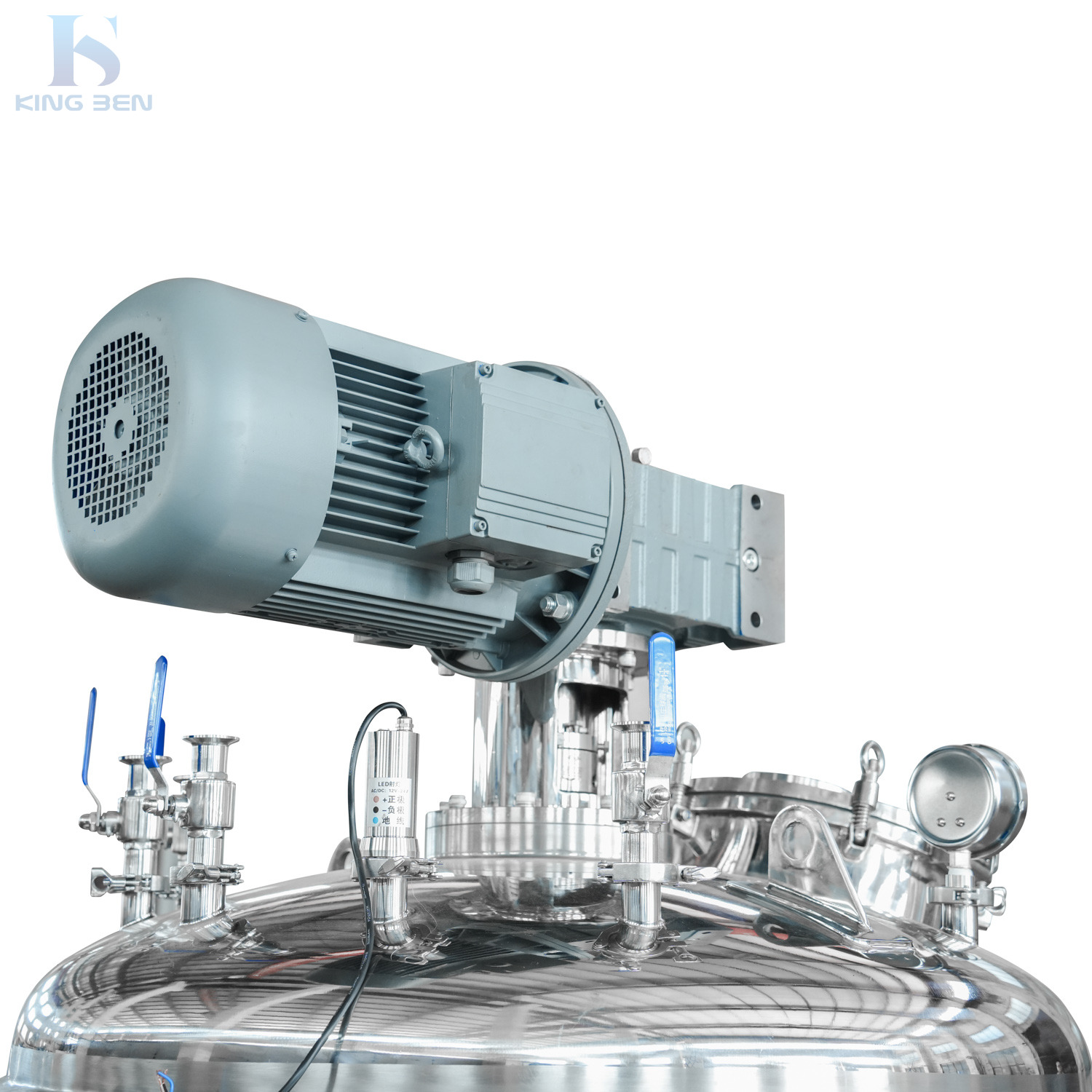

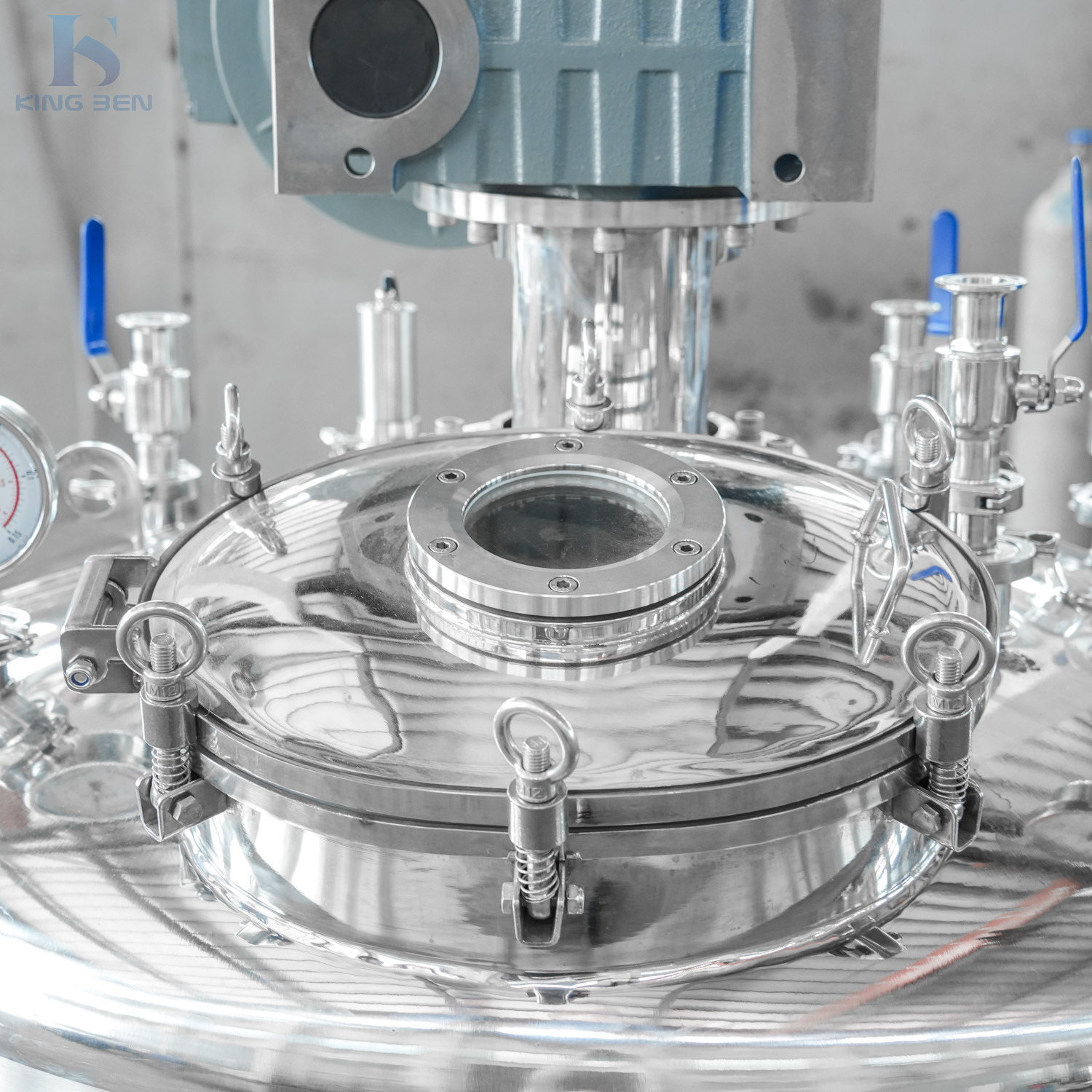

本设备采用热水循环加热保温型真空化胶罐，罐体（内胆、夹套、保温套）封闭式保温型三层结构，搅拌总成配卧式减速机单向多层搅拌桨旋转，人孔（投料口）采用快开式。

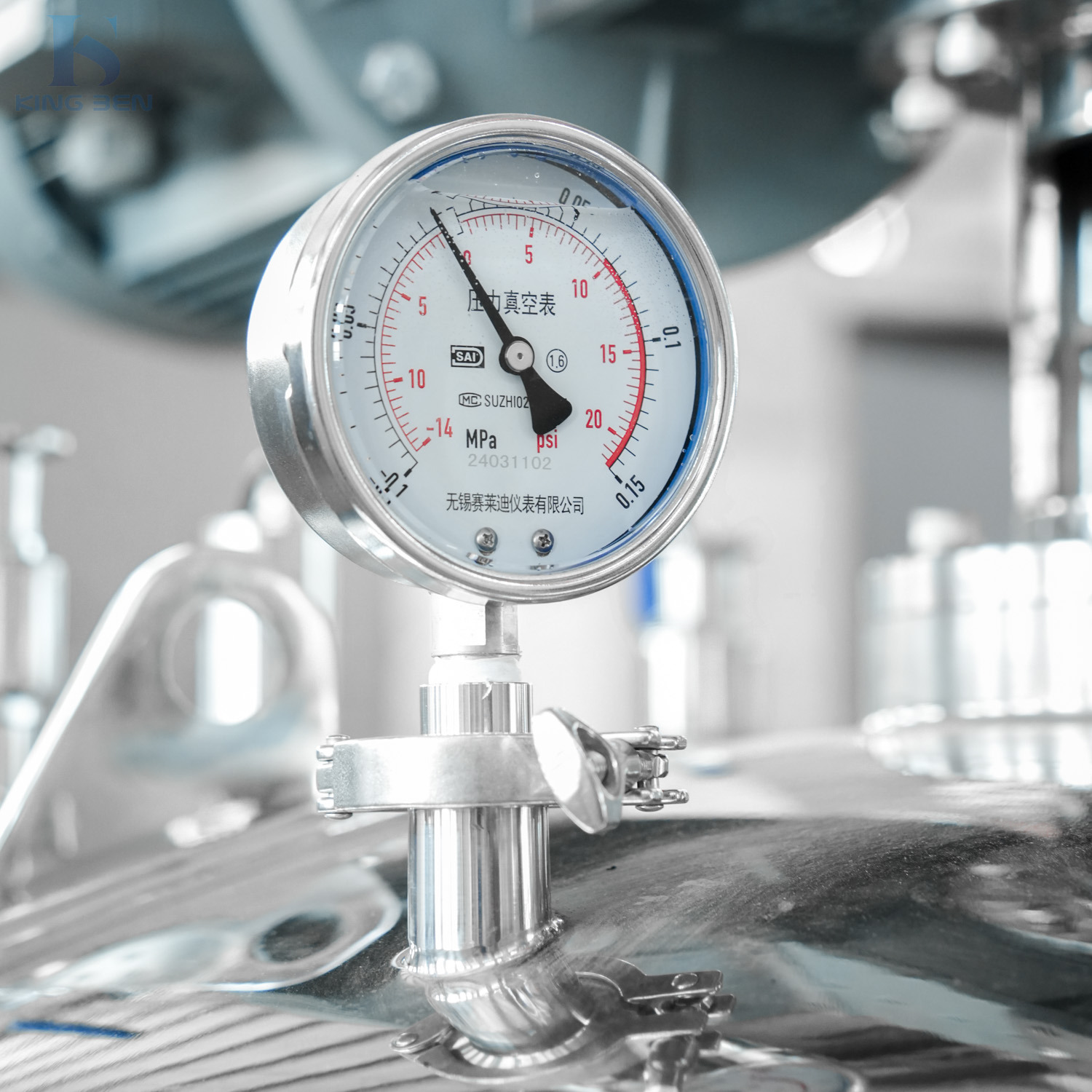

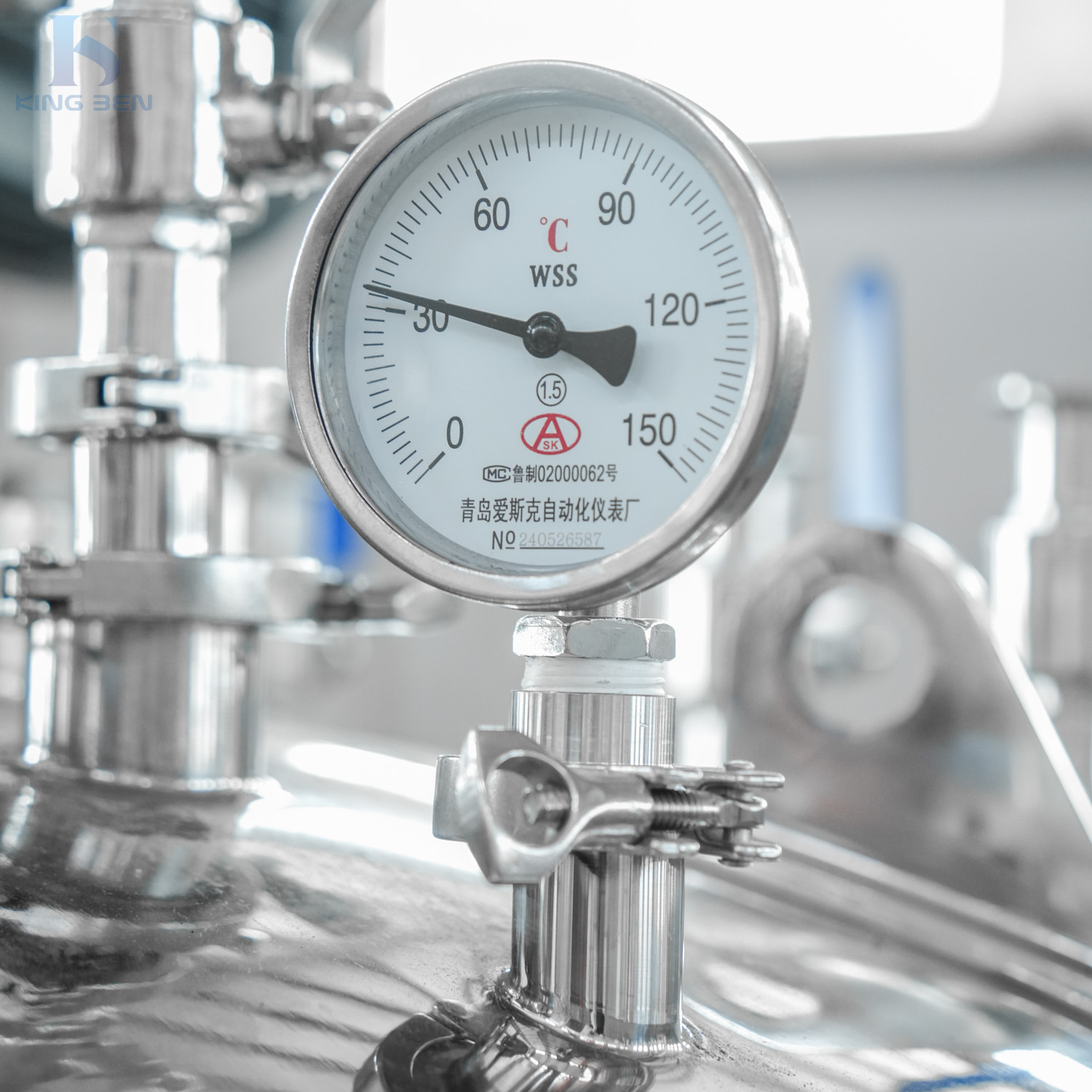

本罐具有内外光亮平滑、拆装清洗方便、洁净度高、机能运转平稳、真空度及保温性能良好等优点。温度表、真空表、清洗球、保温阀等配套齐全，材质（除减速机外）其余304不锈钢材料。
The gelatin Melting tank is the essential equipment in gelation preparation.
My tank has advantages such as smooth internal and external brightness, easy disassembly and cleaning, high cleanliness, smooth operation, good vacuum and insulation performance. The temperature gauge, vacuum gauge, cleaning ball, insulation valve and other accessories are complete, and the material (no-include reducer) is made of 304 stainless steel material。
| 有效容积(升） Effective volume (L) | 600L | 800L | 1000L | 1200L | ||||
| 电机功率Motor power | 5.5KW | 5.5KW | 7.5KW | 7.5KW | ||||
| 电机转速motor speed | 51 RPM | 51 RPM | 51 RPM | 51 RPM | ||||
| 使用温度Operating temperature | 0-200 °C | 0-200 °C | 0-200 °C | 0-200 °C | ||||
| 罐内真空度 | -＜0.09Mpa | -＜0.09Mpa | -＜0.09Mpa | -＜0.09Mpa | ||||
| 夹套工作压力Pressure | ＜0.09Mpa | ＜0.09Mpa | ＜0.09Mpa | ＜0.09Mpa | ||||
| 外形尺寸Dimension | Φ1200*2000mm | Φ1300*2100mm | Φ1400*2200mm | Φ1500*2300mm | ||||
| 数量： | |
|---|---|
水浴式化胶罐 Water-bath Gelatin Melting Tank
化胶罐是软胶囊生产中胶皮制备的关键设备，化胶质量的好坏、化胶效率的高低直接影响软胶囊的质量和软胶囊车间生产效率。
水浴式化胶罐可有效提高成品胶品质，防止过温糊胶废胶。
本设备采用热水循环加热保温型真空化胶罐，罐体（内胆、夹套、保温套）封闭式保温型三层结构，搅拌总成配卧式减速机单向多层搅拌桨旋转，人孔（投料口）采用快开式。
本罐具有内外光亮平滑、拆装清洗方便、洁净度高、机能运转平稳、真空度及保温性能良好等优点。温度表、真空表、清洗球、保温阀等配套齐全，材质（除减速机外）其余304不锈钢材料。
The gelatin Melting tank is the essential equipment in gelation preparation.
My tank has advantages such as smooth internal and external brightness, easy disassembly and cleaning, high cleanliness, smooth operation, good vacuum and insulation performance. The temperature gauge, vacuum gauge, cleaning ball, insulation valve and other accessories are complete, and the material (no-include reducer) is made of 304 stainless steel material。
有效容积(升） Effective volume (L) | 600L | 800L | 1000L | 1200L | ||||
电机功率Motor power | 5.5KW | 5.5KW | 7.5KW | 7.5KW | ||||
电机转速motor speed | 51 RPM | 51 RPM | 51 RPM | 51 RPM | ||||
使用温度Operating temperature | 0-200 °C | 0-200 °C | 0-200 °C | 0-200 °C | ||||
罐内真空度 | -＜0.09Mpa | -＜0.09Mpa | -＜0.09Mpa | -＜0.09Mpa | ||||
夹套工作压力Pressure | ＜0.09Mpa | ＜0.09Mpa | ＜0.09Mpa | ＜0.09Mpa | ||||
外形尺寸Dimension | Φ1200*2000mm | Φ1300*2100mm | Φ1400*2200mm | Φ1500*2300mm | ||||
